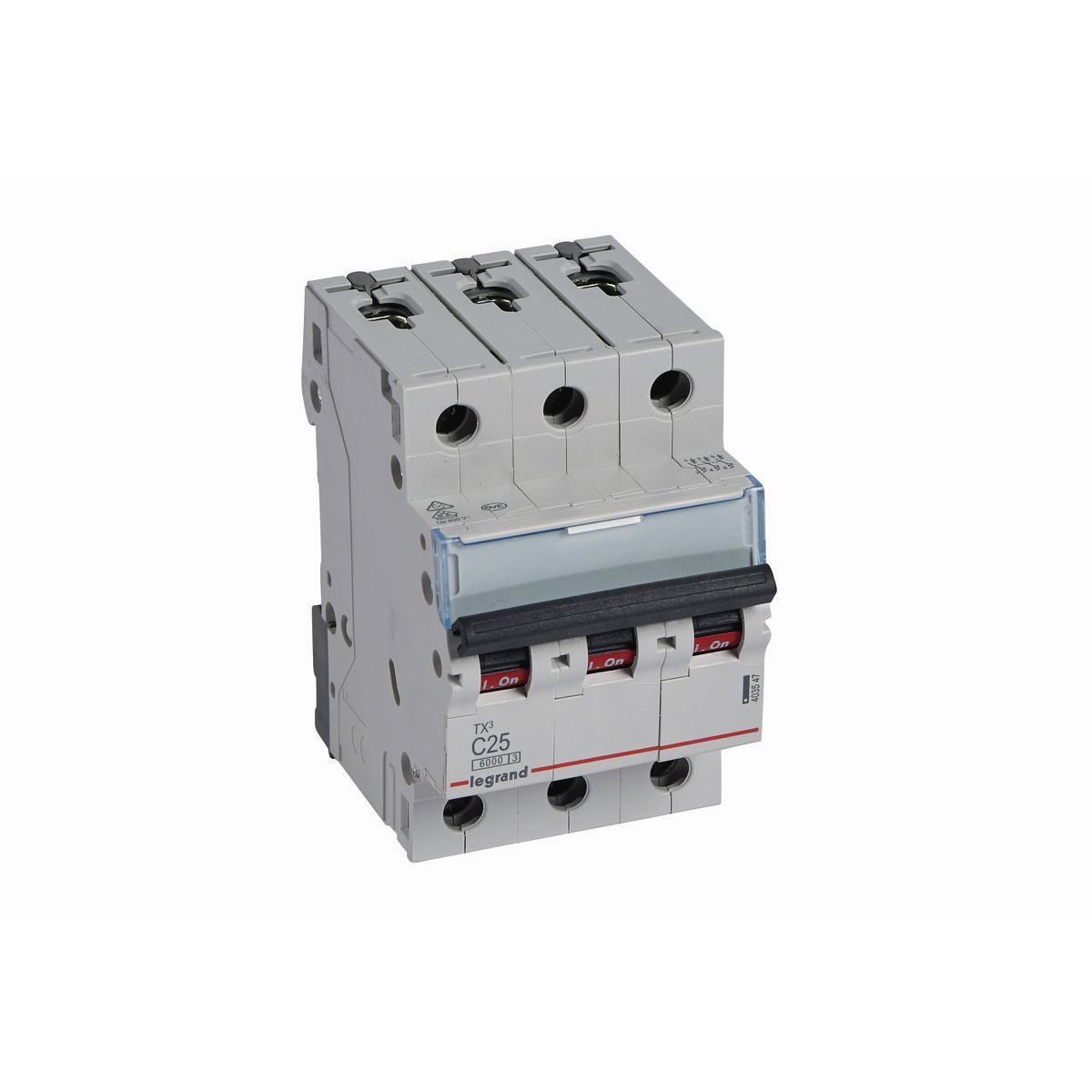

Legrand Automatic Fuse 25A Three Pole 6kA 400V Type C 403547

General characteristics of TX3 6 kA circuit breakers:

• Thermomagnetic protection from 6 to 63 A, curve B & C.
• Possibility of bridging with a split or forked comb.
• Breaking capacity: 6000 – IEC 60898-1 – 230/400 V.
• 6kA – IEC 60947-2 – 230/400 V.
• It can be equipped with TX3 / DX3 accessories, such as auxiliary contacts, trip coils and remote control motors.
• It does not accept differential protection blocks.

Product Features:

• Three-pole 400 V.
• Curve: C.
• Rated current: 25 A.
• Size: 3 elements of 17.5 mm.
