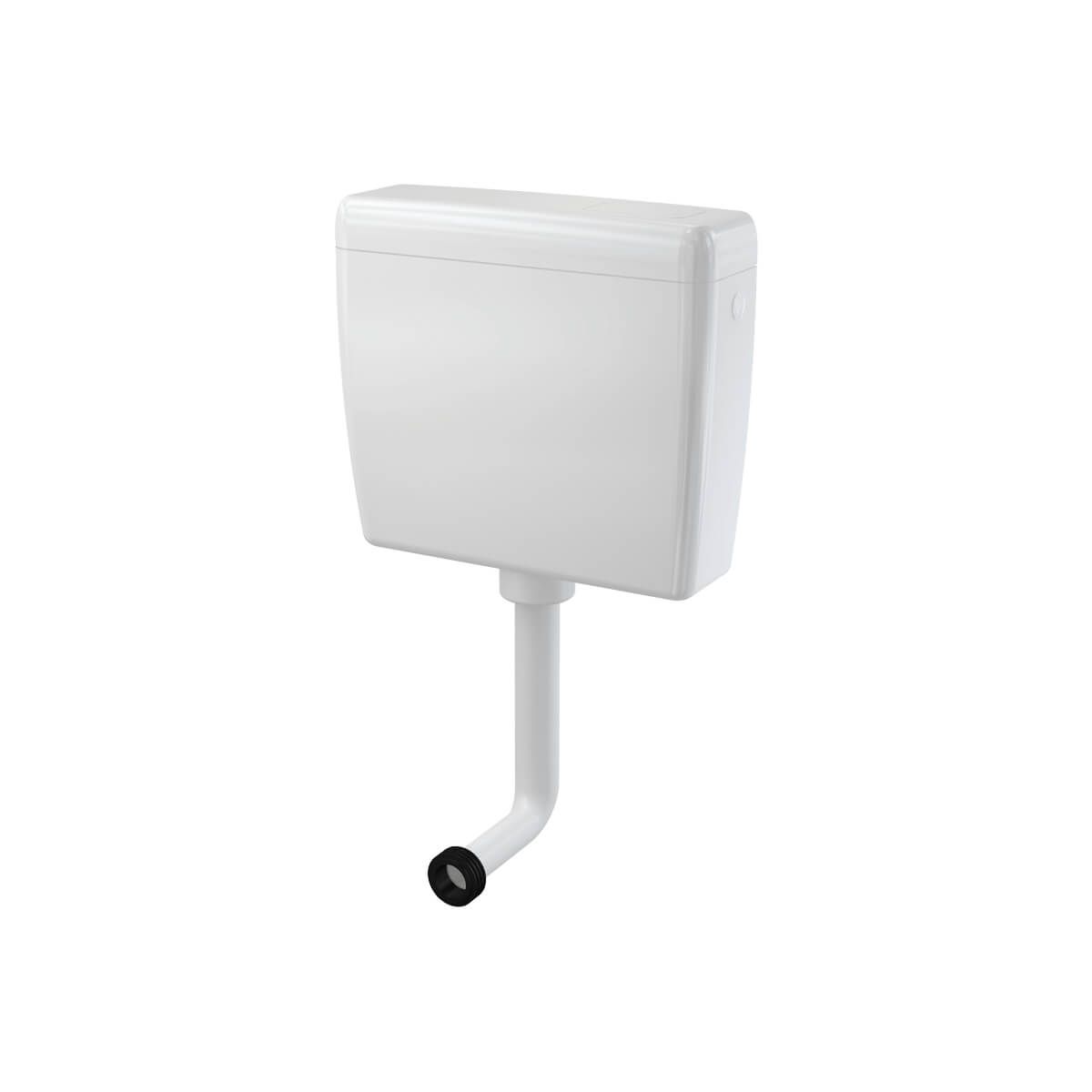

Alca Universal Plastic Tank Start / Stop A94-1/2″

Application

• For high, medium and low position installation
• For wall-mounted installation

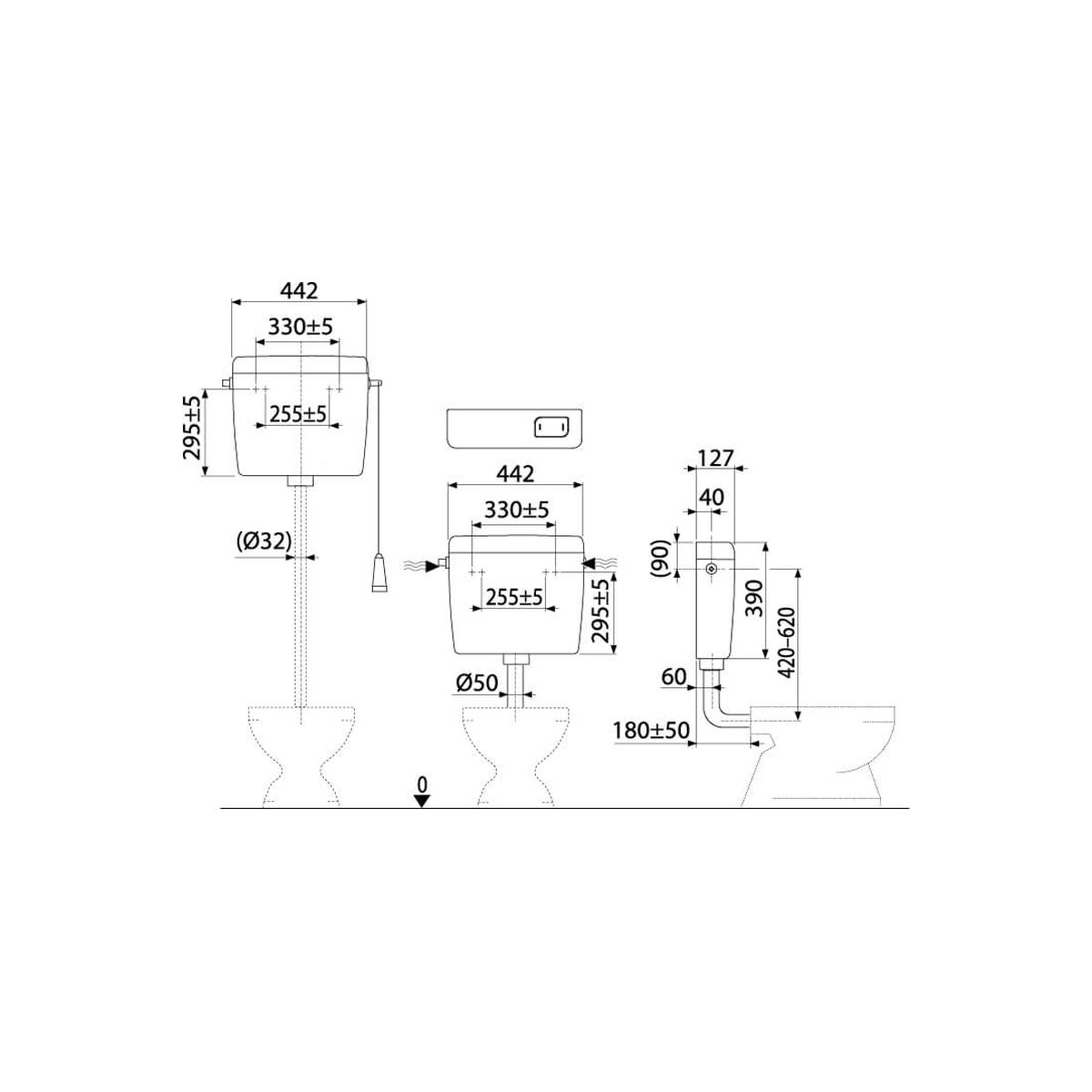

• Dimensions: 456 x 410 x 142 mm

Characteristics

• Certified 1/2″ float
• The cistern is insulated, greatly reducing noise and combating condensation
• Water supply from left/right
• The general supports with their distances and shape are compatible with existing tanks
• Volume 8 | with a wide variety of flow volume settings
• START/STOP flow
• Water saving setting
• The design ensures comfort for children and people with reduced mobility
• ABS material

Technical specifications

• Flow: 6-8 |
• When installed in a high position the stop function is not available
• Pressure range: 0.05 – 0.8 MPa
• Category functional requirements |
• Recommended operating pressure: 0.05 – 0.8 MPa
• Acoustic class || <30dB

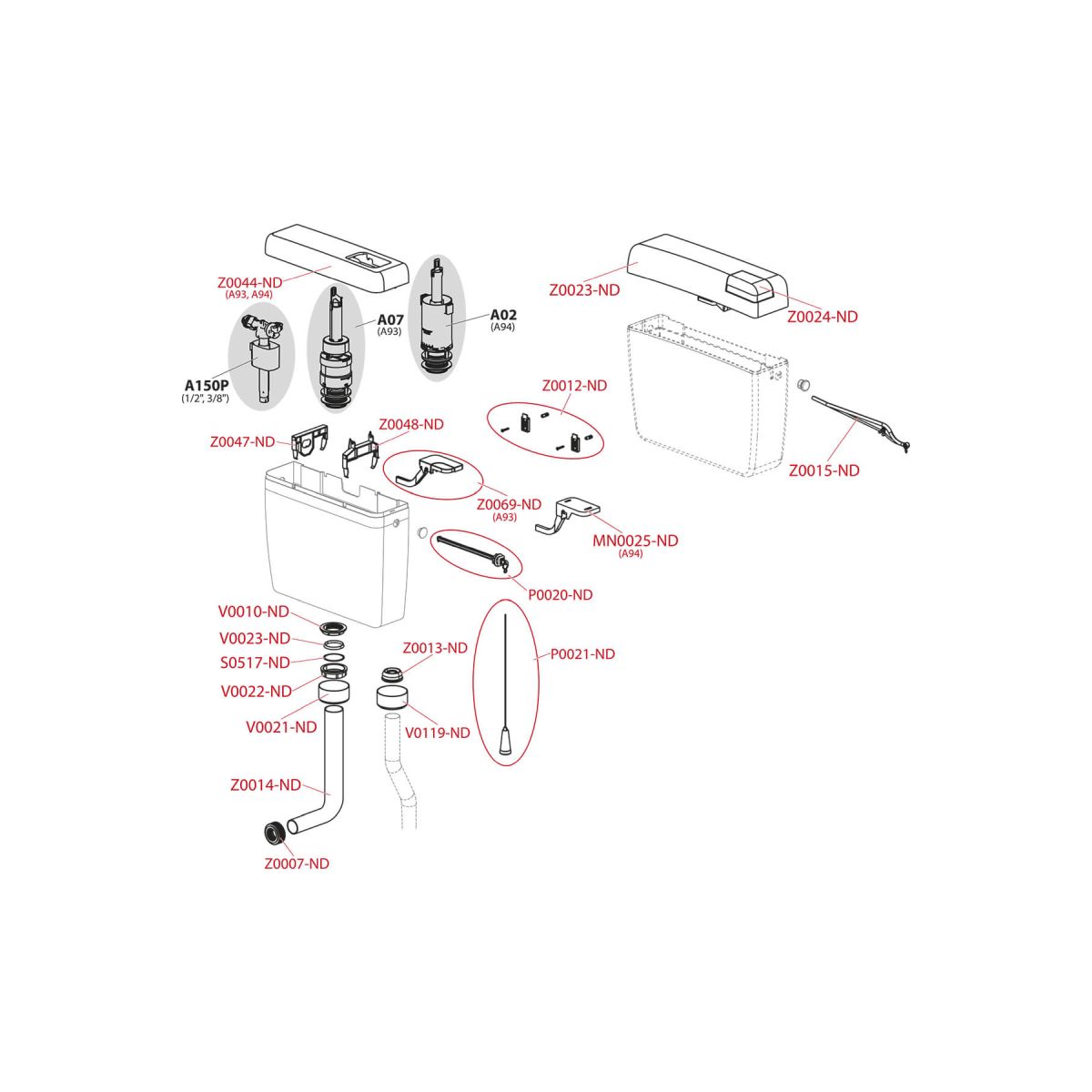

Package contents

• Tank
• 1/2″ mechanism
• Certified float 1/2″ (28-10050) kiwa
• Angled drain pipe φ50/50mm for low flush cistern
• Fixing set: screwdriver φ5×40 (pcs), dowels φ8 (2pcs)
• Curly rubber band
