Abb CA4-10 Switch Contact Circuit Board 45391

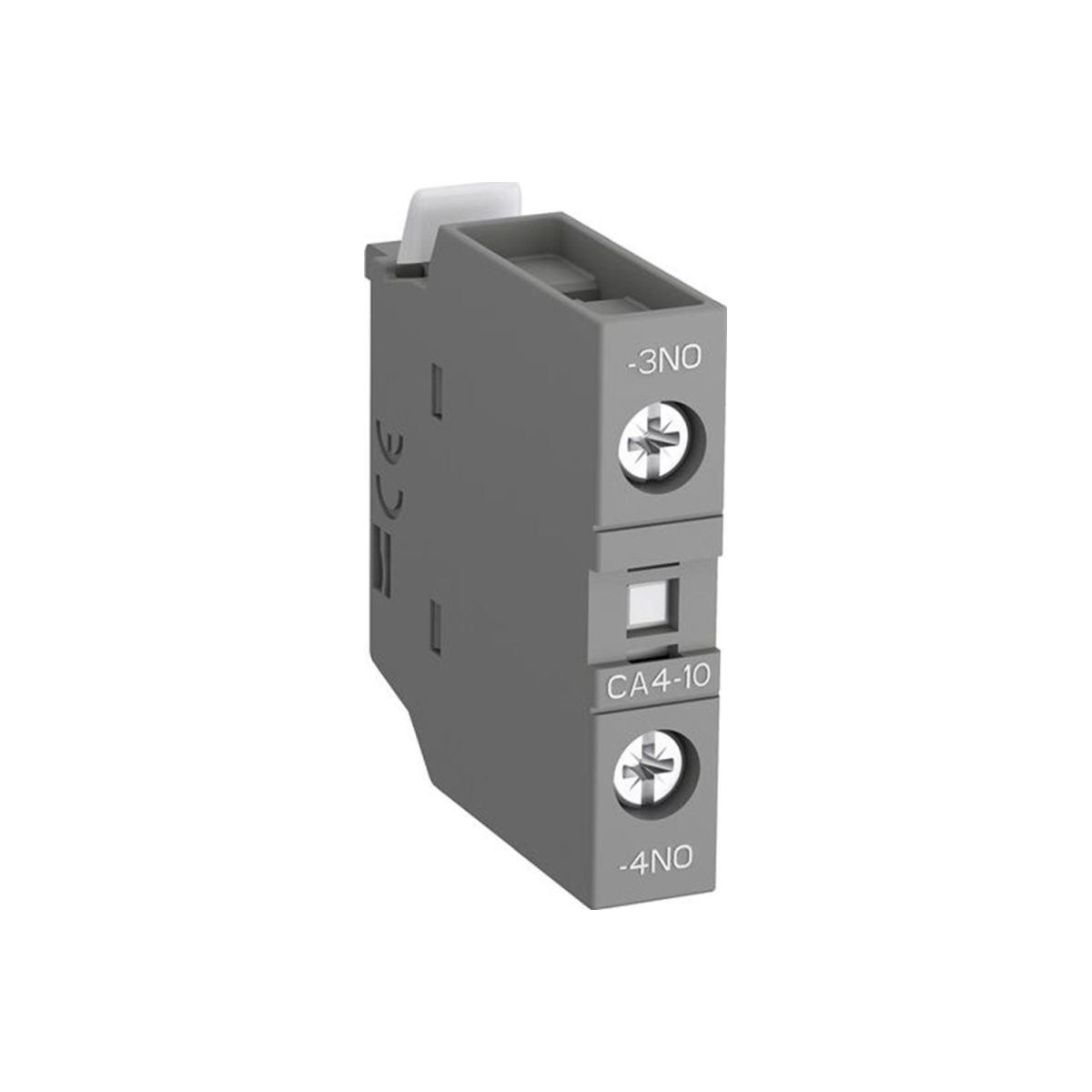

Abb Auxiliary Front Contact 1NO For AF09 – AF96 CA4-10. The CA4-10 is a 1 pole front auxiliary contact block.

Characteristics:

• Number of Poles: 1
• Mounting type: Front mounting
• Auxiliary contacts: 1 NO, 0 NC
• Nominal frequency (f): Auxiliary circuit 50 / 60 Hz
• Rated impulse withstand voltage (U imp): 6 kV
• Rated operating current AC-15 (I e):
• 500V: 2A
• 690V: 2A
• 24 / 127V: 6A
• 220 / 240V: 4A
• 400 / 440V: 3A
• Suitable for: AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AFC30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC5 B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB, AF40B, AF52B, AF65B, AF80B, AF96B.
• Dimensions:
• Width: 9.9mm
• Length: 39.5mm
• Height: 43mm
